Assembly Fixtures

Synchron Machine Tools have designed and produced a number of jigs and fixtures for several applications across a number of industry sectors including the automotive, automotive plastics, welding and aerospace industries.
The abilities of our in-house jig and tool design facilities enable simple jigs and more complex fixtures to be designed to suit the customers requirements. Laser cut tooling is comonly used as this allows complex shapes to be cut to match customer design information.

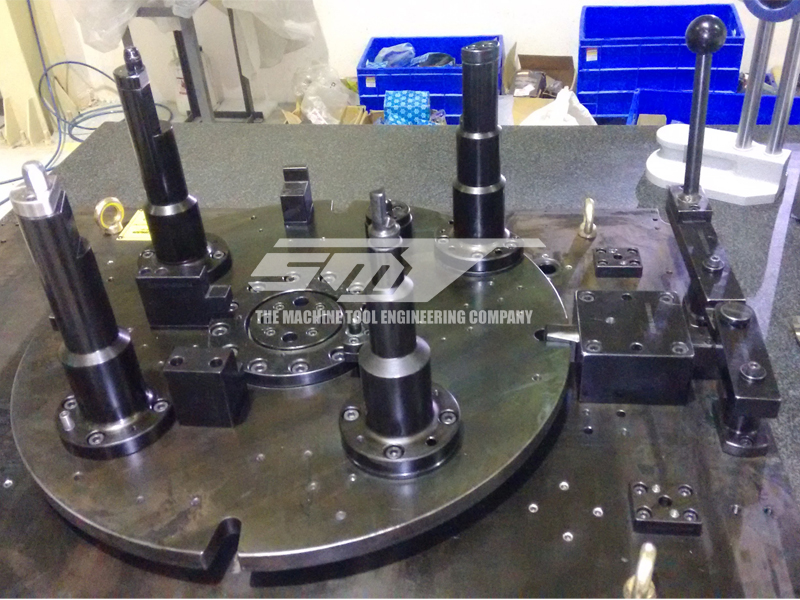

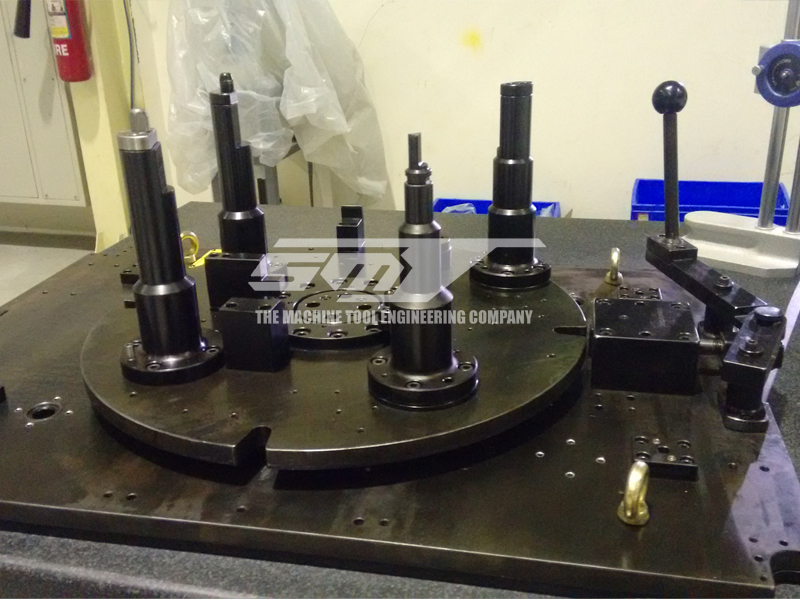

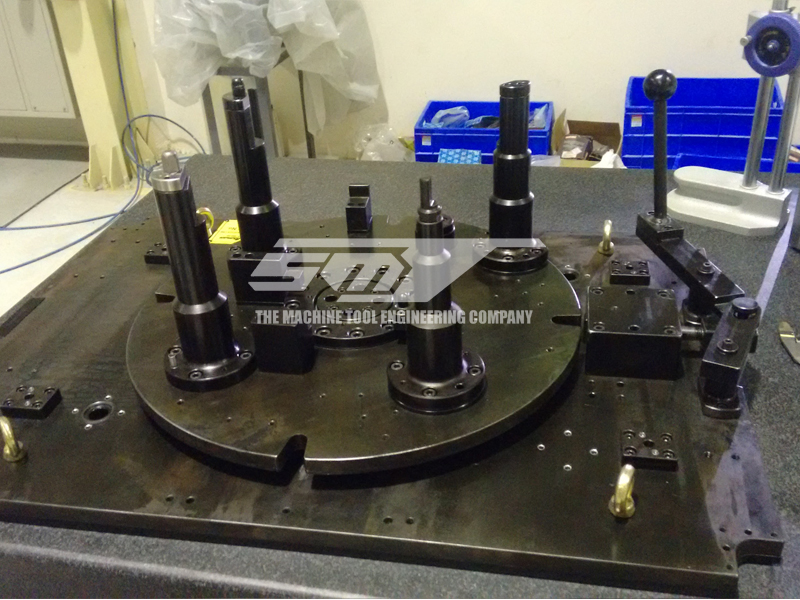

Jigs and fixtures along with specific tooling form a critical element of machinery designed and supplied by us, it is this experience which is used to supply standalone jigs and fixtures to our customers when required. The examples of checking jigs and assembly fixtures shown here vary from a large fixture for measuring and checking a casting for the aerospace industry to a small cost effective checking jig to hold an automotive plastic bumper during the manual polishing process.
